ISO-TOP RAIN PROTECTION PROFILE
To keep the facade dry!
Protection against unwanted water ingress
The ISO-TOP RAIN PROTECTION PROFILE made from highgrade, compression-resistant XPS was specially developed for in-front-of-wall installation systems. It reliably defl ects water at the upper horizontal connection between components. The ISO-TOP RAIN PROTECTION PROFILE guarantees functionally reliable defl ection of water running down, both during the critical shell construction phase and throughout the entire useful life of the building. In combination with suitable foils, the ISO-TOP RAIN PROTECTION PROFILE effectively prevents the uncontrolled penetration of water into the structure. This is particularly important during the shell construction phase when large amounts of water can run down the surface of the facade. The well thought-out design allows the wedge to reliably direct the water in front of window systems, thus preventing water collecting and backing up. With its high-precision shaping and high-quality material, it guarantees long-term and reliable sealing that substantially helps to maintain the state of the building.
- excellent functional weather protection
- prevents unwanted collection and backing up of water
- perfect for ISO-TOP WINFRAMER & overhanging components
- simple to cut to length
- excellent for new builds and renovations to reduce energy consumption
- suitable for passive energy houses
- complies with the requirements of the Building Energy Act and the recommendations of the RAL “installation guide”
- 10-year functional warranty*
* On the conditions of the manufacturer (available on request).

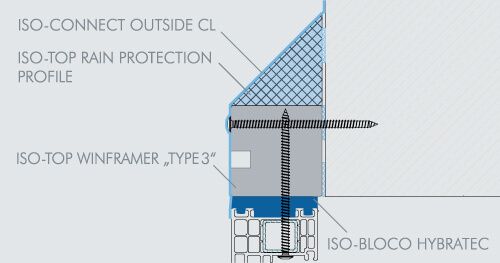

The ISO-TOP RAIN PROTECTION PROFILE is used in double-leaf and multi-leaf facade constructions. It is fi tted to the upper horizontal connection of overhanging constructions where it can perform its protective function to best effect. Specially designed for use in in-front-of-wall installations, the ISO-TOP RAIN PROTECTION PROFILE is excellent for defl ecting rainwater. It reliably defl ects the water away from the component, offering
effective protection for the facade against unwanted water ingress.
The following accessories are recommended for ease of use:
- ISO-TOP FLEX-ADHESIVE WF for bonding to ISO-TOP WINFRAMER wood profi les and wall surfaces
- ISO-CONNECT OUTSIDE CL as temporary weather
protection until it is defi nitively covered over with a thermal insulation composite system - ISO-CONNECT OUTSIDE EPDM as permanent mechanical weather protection for rear-ventilated, lightweight and heavy wall shells such as clinker bricks, metal facades and stone cladding panels
The following accessories are recommended for ease of use:
- ISO-TOP FLEX-ADHESIVE WF for air tight bonding
- ISO-MEMBRA SX for air tight sealing to the component
