Overview

BOOSTING OUR SQUAD UP FRONT, IN MIDFIELD AND IN DEFENCE

Product Coach Andreas Lange, ISO-Chemie GmbH

Three stars will be playing a major role in the ISO³-WINDOW SEALING SYSTEM from now on. In the 3-level seal in accordance with the RAL “Installation guide” our striker ISO-TOP FACADE SEAL is guaranteeing resistance to driving rain and weather protection on the exterior, our midfielder ISO-TOP ELASTIFLEX for thermal and sound insulation in the functional area and our defender ISO-TOP ACRYLSEAL F for an airtight seal on the interior.

“We have been top of the league with our ISO³-WINDOW SEALING SYSTEM for years.”

Product Coach Andreas Lange
ISO-Chemie GmbH

Adhesive strength for defence

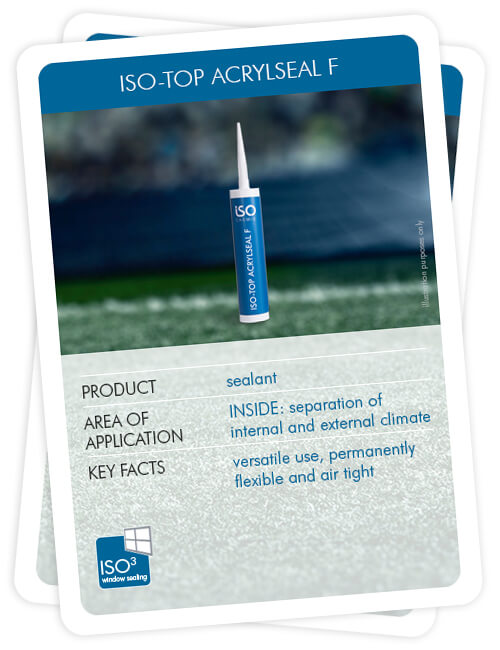

ISO-TOP ACRYLSEAL F

ISO-TOP ACRYLSEAL F is a high-quality, flexible one-component sealing on a acrylate dispersion basis corresponding to DIN EN ISO 11600-F-12,5E. It is almost odourless, colour-fast, weather- and UV-resistant. ISO-TOP ACRYLSEAL F remains waterproof and permanently elastic even after curing. The innovative sealant demonstrates its optimum adhesive properties on many porous materials as well as on rigid PVC and Aluminium.

What makes the difference with ISO-TOP ACRYLSEAL F:

tested to GEV-EMICODE^®, certified as very low-emission (EC1^PLUS)
can be processed from +5 °C
permanently elastic after drying
for versatile use on many standard construction surfaces
low steam permeability
complies with DIN EN ISO 11600-F-12.5E (maximum total deformation 12.5 %)
can be painted over very well following complete curing, as per DIN 52452
is easy to plaster or paper over

Flexibility for central midfield

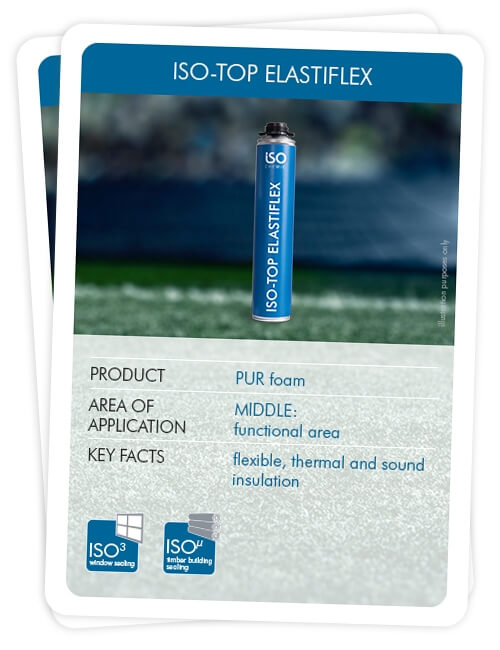

ISO-TOP ELASTIFLEX

ISO-TOP ELASTIFLEX is a highly elastic PUR spray foam which is about three times more flexible than conventional PUR foams on the market. The high flexibility significantly reduces the risk of the foam cracking in the joint, and thus guarantees thermal and sound insulation long-term on the functional level. Thermal elongation of patio doors, lift-and-slide doors and large-size construction elements can be fitted easily thanks to the high flexibility of the PUR spray foam. ISO-TOP ELASTIFLEX guarantees a high wind-tightness of connection joints and can be processed at temperatures down to -10 °C. Low volume loss and very good form stability are further positive characteristics of ISO-TOP ELASTIFLEX.

What makes the difference with ISO-TOP ELASTIFLEX:

highly elastic, three times more flexible than conventional PUR spray foam
complies with the principles of the RAL fitting Guideline
tested to GEV-EMICODE^®, certified as very low-emission (EC1^PLUS)
excellent adhesion to almost all construction surfaces
very fast curing
no pressure, will not bow or distort Framework
solvent-free
resistant to ageing, rotting, mould and decay
free, simple and complete recycling thanks to the P.D.R. System

Permanent elasticity for up front

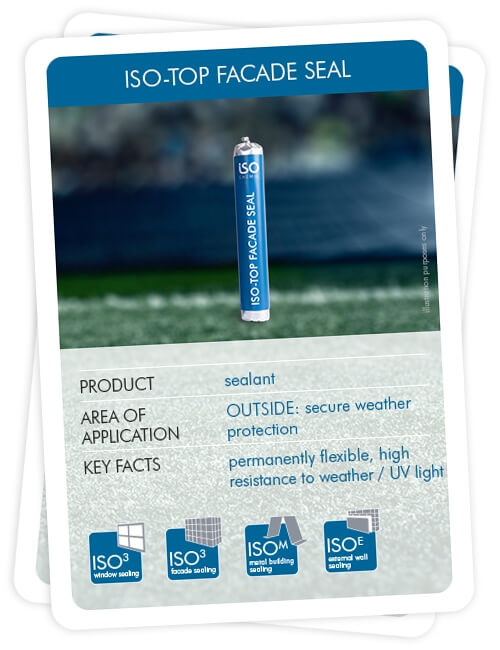

ISO-TOP FACADE SEAL

ISO-TOP FACADE SEAL is an almost odourless, sprayable sealant on a hybrid polymer basis, which is ideal for the sealing of moving joints on the outside of buildings thanks to its colour-fastness and resistance to weathering and UV rays.

What makes the difference with ISO-TOP FACADE SEAL:

can be processed from 0 °C
permanently flexible after curing
complies with ISO 11600 F-25LM (maximum total deformation 25 %)
for versatile use on many standard construction surfaces
can be painted over well
even sticks to moist surfaces
free of solvents, isocyanate and silicone
non-corrosive
leaves no stains on porous surfaces such as natural stone, dressed stone, marble, granite

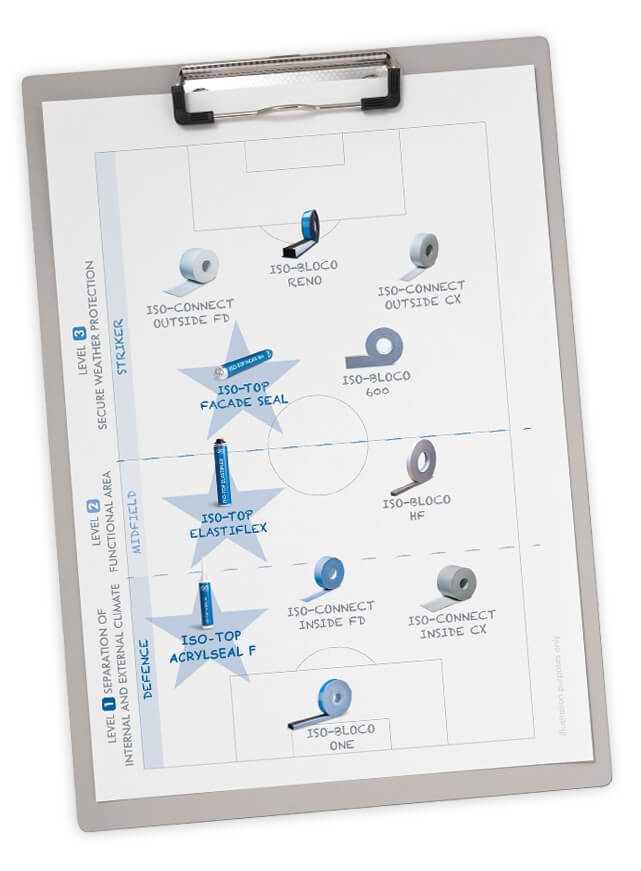

LEVEL 1:
SEPARATION OF INTERNAL AND EXTERNAL CLIMATE

The penetration of humid room air into the structure is prevented by this level, thus preventing condensation of this humidity at points where surface temperatures are below the dew point. Air tight sealing products are fitted to prevent uncontrolled heat loss and drafts via the connection joint.

LEVEL 2:
FUNCTIONAL AREA

Thermal and acoustic protection are guaranteed by this level. The functional area must remain dry and must not be subject to condensation from the room side nor driving rain from the outside.

LEVEL 3:
SECURE WEATHER PROTECTION

Level 3 must be designed to resist driving rain, as a wind and rain barrier. Driving rain values of at least 600 Pa are usually required; these are achieved or even significantly exceeded.

TOP TEAM, TOP EQUIPMENT

„To enable our stars to develop their full potential right from the word go, we have put together equipment that will get the best out of our products.”

Product Coach Andreas Lange
ISO-Chemie GmbH

ISO-TOP GUN

The high-quality dosing gun ISO-TOP GUN is recommended for optimum processing of ISO-TOP ELASTIFLEX.

ISO-TOP EASYPRESS

The professional processing of ISO-TOP ACRYLSEAL F is child’s play with the metal skeleton hand press ISO-TOP EASYPRESS.

ISO-TOP PRESSFIX

The straightforward processing of ISO-TOP ACRYLSEAL F and ISO-TOP FACADE SEAL is no problem at all with the aluminium tube press ISO-TOP PRESSFIX.

ISO-TOP BLUE PRIMER

This bonding agent prepares mineral and fibrous surfaces perfectly for further processing with ISO-TOP ACRYLSEAL F and ISO-TOP FACADE SEAL.

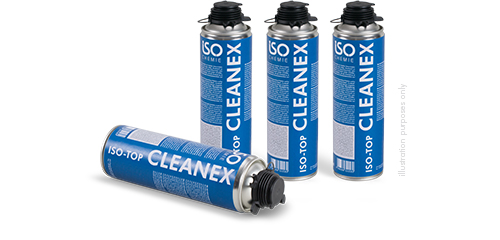

ISO-TOP CLEANEX

This cleaner achieves top cleaning results on the inside and outside of PUR foam guns and removes fresh soiling caused by 1-component spray foam easily.
